KASON

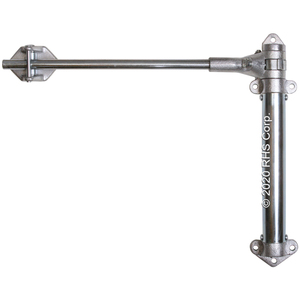

1097 SERIES SPRING ACTION DOOR CLOSER, 18"
ZINC PLATED
| LIST PRICE | $ 1033.87 | ||
| YOUR PRICE | $ 1033.87 | ADD TO CART | |
MFR Part #: 11097000004
RHS Part #: 40-304
RHS Part #: 40-304
| IN STOCK: | CA | YES |
| CO | YES |
PRODUCT INFORMATION
RHS NOTES
FOR OPERATOR SAFETY, THE 1097 SERIES DOOR CLOSER IS INTENDED TO BE USED ONLY ON DOORS EXCEEDING 200 LB (90.8KG) WITH THE CLOSER MOUNTED AS LOW AS POSSIBLE.
SPRING TENSION CAN BE SET TO CLOSE DOOR UNDER A WIDE RANGE OF CONDITIONS. TOLLER ROD GUIDE ASSURES SMOOTH OPERATION WITH EITHER CAM-LIFT OR FIXED PIN HINGES.
REVERSIBLE FOR LEFT OR RIGHT HINGED DOORS. FOR RIGHT HINGED DOORS CLOSER IS UPRIGHT. FOR LEFT HINGED DOORS THE CLOSER IS INVERTED (UPSIDE DOWN).
WARRANTY NOTE!
ALWAYS APPLY TENSION TO THE SPRING IN SMALL INCREMENTS TO KEEP FROM BREAKING THE SPRING.
TYPICALLY THE SPRING IS OVER-TENSIONED AND SNAPS. WARRANTY RESTRICTIONS WILL APPLY IN THESE INSTANCES. PLEASE CONTACT A SERVICE REPRESENTATIVE.
1097
Maximum torque 348in-lbs. Max Force by arm: 18lbs
DOOR SIZE
From approx. 5-feet wide X 7-feet tall up to 8-feet wide X 10-feet tall
DOOR WEIGHT
200 to 400lbs
MATERIAL
Malleable iron with steel rod and tube.
MOUNTING
Guide drilled or 1/4" (6.0mm) screws. Closer drilled for 3/8" (9.0mm) screws. Mount just above lower hinge for best result.
OFFSET
1-5/8" (41.28) maximum without shimming or special consideration.
